Glass A-1

Our company offers all kinds of Oil Seals, such as Automotive Seals, Agricultural Seals, Pneumatic Seals, Hydraulic Seals and so on, all with excellent quality.

Description

 Application:

Bearing kit, Forest Machines, Lawnmower, Power Steering System, Car, Truck, Bus, Tractor, Trailer, Gas Spring for Automobile, Furniture, Electric Equipment, Alternator, A/C Compressor, Shaft, Hydraulic Pump, Vacuum Equipment, Gearbox, Crankshaft and Camshaft, Shock Absorbers for automobile, motorcycle and bicycle, Power steering systems, Trucks, buses, tractors, trailers, etc, Gas Spring for Automobile, Seal for furniture, electric equipment, etc, A/C Compressor, Alternators, European car parts, Shaft Seal, Hydraulic Pump, V Seal, Vacuum Equipments, Shaft, Gearbox, Air Compressor, Bearing Kit, Seals for Forest Machines, lawnmowers …… etc.

Power Steering Seals, Heavy Duty Wheel Seals, Valve Stem Seals, Crankshaft and camshaft, Shock Absorber Seals, Gas Spring Seals, A/C Compressor Seals, Transmission Seals, C.V. Joint Boots, Agricultural Seals, Rotary Shaft Seals, High Pressure Seals, Reducer Seals, Motor Seals, V-Seals (VA, VS, VL, VE), Teflon Seals, Axial Face Seals, Bonded Seals, End Caps, Oil Gauge Seal, Bearing Unit Seals, Pneumatic Seals, Hydraulic Seals, Rod Wipers

Standard Rotary Seals,
Bonded seals, ThredSeals,
Stat-O-Seal		 Automotive Seals
Automotive Seals Agricultural Seals
         Hydraulic & Pneumatic Seals

 for Automotive Applications



  1. Power Steering Seals
  2. Heavy Duty Wheel Seals
  3. A/C Compressor Seals
  4. Crankshaft and Camshaft Seals
  5. Shock Absorber Seals
  6. Gas Spring Seals
  7. Bellows and Dust Boots
  8. Alternator Seals
  9. Transmission Seals

 for Industrial Applications

  1. Rotary Shaft Seals
  2. High Pressure Seals
  3. Reducer Seals
  4. Motor Seals
  5. Pneumatic Tool Seals
  6. V-Seals (VA, VS, VL, VE)
  7. Teflon Seals
  8. Axial Face Seals
  9. Bonded Seals
  10. End Caps
  11. Oil Gauge Seals
  12. Bearing Unit Seals

 for Agricultural, Constructional, Mining Applications

  1. Oil Seals for agricultural equipments
  2. Oil Seals for constructional equipments
  3. Oil Seals for mining equipments

Pneumatic or Hydraulic Applications

  1. Pneumatic Seals
  2. Hydraulic Seals
  3. Rod Wipers
  4. Fabric reinforced OD Seals
  5. O-Rings, X-Rings, Wear Rings, O-Ring Kits, O-Ring Cords

 Consumer Electronics Applications

  1. Laundry Washer Seals
  2. Squeezer Seals

OIL SEAL CHARACTERISTICS



Features

 for Automotive Applications

  1. Power Steering Seals
  2. Heavy Duty Wheel Seals
  3. A/C Compressor Seals
  4. Crankshaft and Camshaft Seals
  5. Shock Absorber Seals
  6. Gas Spring Seals
  7. Bellows and Dust Boots
  8. Alternator Seals
  9. Transmission Seals

 for Industrial Applications

  1. Rotary Shaft Seals
  2. High Pressure Seals
  3. Reducer Seals
  4. Motor Seals
  5. Pneumatic Tool Seals
  6. V-Seals (VA, VS, VL, VE)
  7. Teflon Seals
  8. Axial Face Seals
  9. Bonded Seals
  10. End Caps
  11. Oil Gauge Seals
  12. Bearing Unit Seals

 for Agricultural, Constructional, Mining Applications

  1. Oil Seals for agricultural equipments
  2. Oil Seals for constructional equipments
  3. Oil Seals for mining equipments

Pneumatic or Hydraulic Applications

  1. Pneumatic Seals
  2. Hydraulic Seals
  3. Rod Wipers
  4. Fabric reinforced OD Seals
  5. O-Rings, X-Rings, Wear Rings, O-Ring Kits, O-Ring Cords

 Consumer Electronics Applications

  1. Laundry Washer Seals
  2. Squeezer Seals

OIL SEAL CHARACTERISTICS

Specification

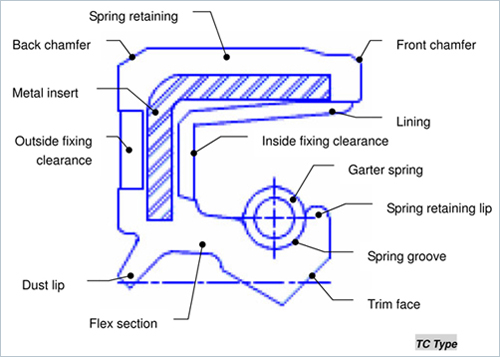

SEALS DESIGN PRINCIPLES

  • Page 1
  • Page 2
  • Page 3
  • Page 4
  • Page 5
  • Page 6
  • Page 7
  • Page 8
  • Page 9
Type Illustration Features
A SA Additional inner metal case to reinforce the structure.
TA
VA
KA
B SB Precision ground metal case O.D., precise and stable for installation. Suitable for fine surfaced housing.
TB
VB
KB
C SC Rubber covered O.D., improve OD sealing ability at the housing.
TC
VC
KC
Type Illustration Features
D DB Two spring-loaded lips on opposite sides, designed for separating two different media
DC
DG
DM
E SEA Metal case extends to flex section for lip reinforcement. Pressure resistance depends on shaft speed and run-out
SEB
SEC
SEM
F SF Similar to type C, rubber covers the whole seal to protect internal metal case from corrosion
TF
VF
KF
Type Illustration Features
G SG Similar to type C, outside rubber is corrugated, suitable for large thermal expansion housing material or when the installation is difficult or subject to damage the O.D. rubber
TG
VG
KG
H SH . Reversed metal case, suitable for installation in special housing.
VH
J SBJ Special metal case design, for easy installation/replacement
TBJ
VBJ
KBJ
Type Illustration Features
L SL Similar to type B, metal case has bevel angled edge for alignment
TL
VL
KL
M SM Similar to type B, with lead-in chamfer, rubber covers internal seal to prevent corrosion
TM
VM
KM
N SCN Suitable for higher pressure environment
TCN
KMN
Type Illustration Features
N1 SCN1 Mid- pressure, rubber covered O.D.
TCN1
N2 SCN2 Mid- pressure, metal case O.D.
TCN2
O OSA Press fit on the shaft and seal the housing. Available in A,B,C,M types, single / dual lips and spring / springless
OSB
OSC
OSM
OUA Triple flat-lips design for dusty, muddy environment
P SAP Flange metal case for easy installation and replacement. Available in A, B, L types, single/dual lips, spring/ springless designs
SBP
TBPL
Type Illustration Features
PA PA PTFE and helix design, low friction, chemical and temperature resistance, suitable for high speed rotation and dry-running,
PL SA-PL PTFE lined seals, low friction, applicable for dry-running, or reducing lip running temperature. Available in A, B, C, F, G, M, Z, N1/N2 types, single/dual lips, spring/springless designs
4 TC4 Reciprocating motion. Type B,M,Z,D available. Various designs available.
DC4S
DG4J
TC4B
TG4J1
KGJB
PS SC4P Suitable for reciprocating motion, to retain internal fluid pressure
TC4P
SCAP
CNB CNB
GNB
Type Illustration Features
U UA Triple flat-lips design for dusty, muddy environment
UB
UC
UM
X / X1 TXA Reversed dust lip, available in B,C,M types
TX1A
Z SZ Similar to M type, rubber-covered top face, enhance O.D. sealing ability
TZ
VZ
KZ
BC / BG SBC Rubber covers half of O.D., dual lip design available
SBG
Type Illustration Features
K1 TCK1 Felted wool lined, dust-proof and provide ventilation
AJ / AO
/ AP		 AJ Suitable in heavy dust, muddy environment, various designs available
AO
AP
ST ST Hub seals, suitable for rigorous operating conditions. Available in various designs.
CRS CRS1 Combined with PU, felted wool or foam to enhance dust-proof function. Available in various designs
VGA VGA1 Available in various designs
RO SBRO Special flex section design, suitable for high run-out conditions. Available in various designs
EC EC O.D. sealing cap. G type available
ECA ECA Similar function to EC type, used in static sealing. Available in various designs
PV PVC1 Gas spring seals, G type available.
QF SQF Rubber and nonwoven covered O.D., used where radial space is limited. Available in single/dual lips, spring/springless designs
Type Illustration Features
RE RE Metal case combined with V ring Prevent dust from the side.
V-Seal VA Prevent dust from the side. All rubber
VS
VL
WS WS Bonded seals, various designs available
WP WP1 Wiper Seal, PU, suitable for reciprocating motions, to wipe clean the axis, prevent dirt ingression. Available in various designs
WPB Wiper Seal, rubber. Available in various designs
U-P UIR U-Packing. Suitable for reciprocating motions, rubber material. Various designs available
UOR
UNR
VS VSB2 Reciprocating motion. G Type available, various designs available.
